A powerful and innovative PC board for industrial or embedded applications.

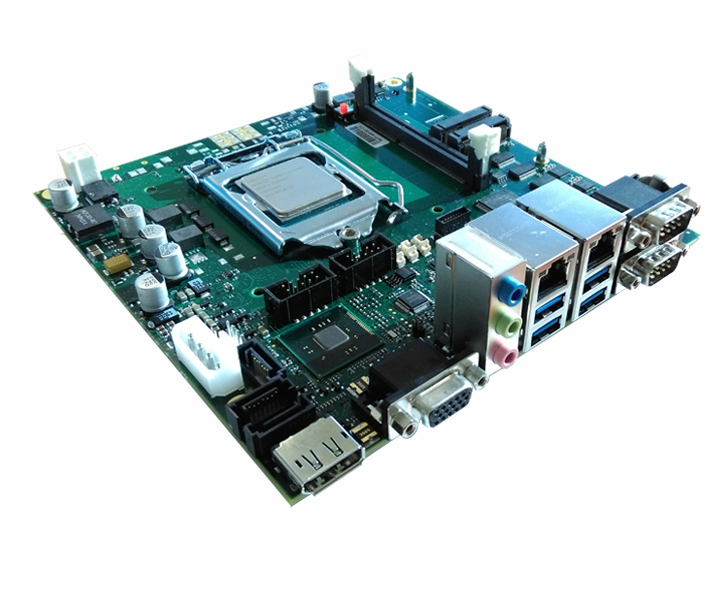

The ITX981 is a compact industrial PC solution in mini-ITX format.
Powerful, it combines a wide range of standard PC interfaces on front side, as well as internal connectors.
Its single-voltage power input simplifies integration in your industrial environment with the ability to power your discs and players.
The mSATA and mPCIe extensions with micro SIM support allow the implementation of M2M connected solutions.
Characteristics
| Titre 1 | Standard PC |
|---|---|
| Processor(s) | LGA1150 socket for 4th generation Intel® Core™ embedded processors i3 / i5 (i7 as an option) – CPU TDP: 35W / 45W / 54W |
| Cache | Frequencies 2.3 ~ 3.5 GHz – Cores 2 / 4 cores – Cache 4M / 6M / 8M |
| Chipset(s) | H81 / Q87 |
| Memory | Up to 8 GB DDR3 1600 MHz 204-pin SODIM socket |
| Ethernet | 2x 10/100/1000 Mb/s (RJ45) |
| Video controller | Intel® HD Graphics 4600 controller integrated – Two independent display pipes – Shared video memory with dynamic allocation – 3D acceleration: DirectX 11.1, OpenGL 4.0 |
| Serial interfaces | 2x RS232/422/485 (SUBD9) & 4x RS232 (HE10) |
| USB lines | H81 : 4x USB 2.0 (HE10), 2x USB 2.0 (type A), 2x USB 3.0 (type A) – Q87 : 4x USB 2.0 (HE10), 4x USB 3.0 (type A) |
| SATA | 1 mSATA 6Gb/s |
| PCIe | 1 mPCIe socket with micro SIM support |
| Audio | HD audio controller |
| BIOS | ATON Systèmes / ACPI / Intel Rapid Storage Technology |
| Titre 2 | Display |
| Display | 1 port VGA / 1 Display port |
| Resolution | VGA – 1920×2000 @60 Hz / Display port – 3840×2160 |
| Titre 3 | Functions |
| Audio input | 1 stereo line input |
| Audio output | 1 audio line output |
| Microphone | 1x microphone input |
| Ignition input | option |
| Titre 6 | Power supply |
| Input voltage | 9/36 Volts (max 45 Watts with one 2”5 hard disk) – Vehicle option (ISO7637-2) with ignition signal management |
| Power management | 5/12V output for drives |
| Titre 4 | Environnement |
| Operating temperature | 0°C / 60°C |
| Storage temperature | -45°C / 85°C |
| Titre 5 | Mechanical |
| Dimensions | 170mm x 170mm (mini-ITX) |
