Modularity by ACTIA PCs to simplify your project
ACTIA PCs interface boxes have been designed to simplify installation and maintenance, and will revolutionize your embedded projects.
Connected to an ACTIA PCs computer, the interface box enhances the system, offering functions for scalability and sustainability.

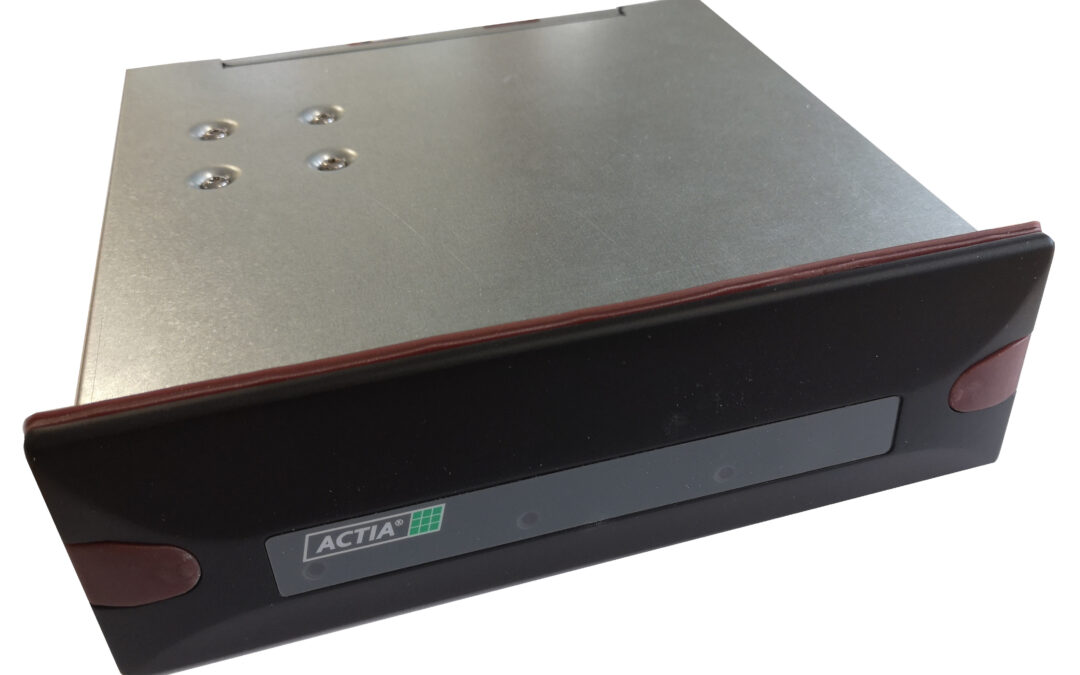

The ACAM3 -IP is an advanced public address system for public transportation vehicles. It is an evolution of the ACAM225 with support of three zones: driver, passengers and exterior. It is now controlled through the IP vehicle network and ITxPT compliant.
Characteristics
| Titre 1 | IP Network |
|---|---|
| IP network | M12 D coding 100 Mb/sec Ethernet connector (ITxPT compliant) |
| Titre 2 | Electrical Specifications |
| Power supply | 12/24V power supply interface with vehicle battery through ignition |
| Electrical | Consumption with audio amplifier: 2.5A |
| Power management | Output amplifiers in standby mode when not used |
| Titre 3 | Inputs & Outputs |
| Inputs | 1 microphone input with activation button |
| Outputs | 20W driver loudspeaker |
| Titre 4 | Audio Dispatcher |
| Audio dispatcher specifications | Configuration of gain on microphone input |
| Titre 5 | Environment |
| Operating temperature | -40°C / +70°C |
| Storage temperature | -40°C / +85°C |
| Operating humidity rate | 10 to 90% without condensation |
| Storage humidity rate | 5 to 95% without condensation |
| Titre 6 | Dimensions |
| Dimensions | 187mm x 198mm x 58mm |
