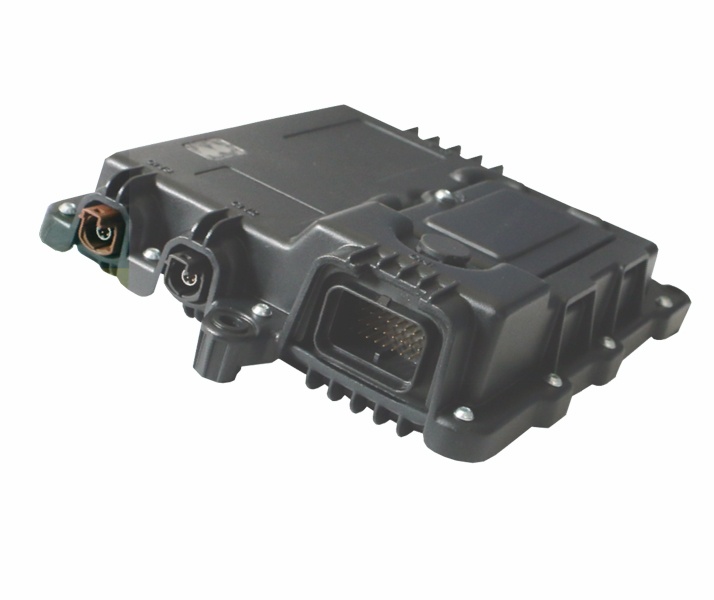

ACTIA’s Ruggedized Telematics Gateway Unit
Smart Communications That Take you Further
OPEN PLATFORM ADAPTABLE TO ANY EXISTING BACK OFFICE & MOBILE APPLICATIONS
• Reduce time to market
• Improve fleet & assets management
• Reduce Total Cost of Ownership
• Increase efficiency of your retail network
• Improve maintenance monitoring with advanced remote diagnostics
• Off-the-shelf solutions
• Customizable hardware platform
• Automotive-grade products designed for harsh environment
• Multi-communication channels
• Backed by ACTIA’s expertise in worldwide certification processes
Characteristics
| Power supply | designed for 12V, 24V and 48V applications |
|---|---|
| Dimensions | 168 mm X 192 mm X 40 mm without customer interface fixation |
| Weigth | 800g |
| Accelerometer/gyroscope | with wake-up capability |
| SIM | e-SIM or SIM card slot |
| Titre 1 | Wireless networks |
| Wifi | b/g/n 2.4GHz (n/ac in option 5GHz) |
| Bluetooth | BT4.2 – BLE |
| Network access device | 2G, 3G or 4G LTE |
| GNSS | GPS, GLONASS |
| Titre 2 | Vehicle communication |
| CAN | 1 CAN with wake-up on CAN capability (+1 optional)* |
| LIN/Kline | 1 LIN or Kline (option)* |
| RS232 | 1 |
| Wire interface | for IDButton (option) |
| USB | 2.0 Full Speed/ High Speed |
| Ethernet | 100 Baset (option) |
| Audio | 1 |
| Titre 3 | CPU Core |
| CPU core | 32 bits CPU ARM microcontroller |
| RTC | 1 (with battery in option) |
| Memory | RAM 256MB (up to 1 GB) / Flash 4 GB (up to 32 GB) |
| Titre 4 | Environment |
| Operating temperature | – 40°C / + 85°C |
| Storage temperature | – 55°C to + 90°C |
| Climatic | temperature cycles per IEC60068-2-14 |
| Electrical transient | Pulse 1,2a & 2b,3a & 3b, 4, 5a & 5b per ISO7637-2 & ISO16750-2 |
| Electrical | 8-52V operating voltage |
| EMC & ESD | Radiated emission per CISPR25/Radiated susceptibility @ 100V/m |
| Mechanical | Shocks Half sinus 400 m/S 2 6ms, 50 shocks/ direction per IEC60068-2-27 |
| IP | IP 67 / IP69k capable |
